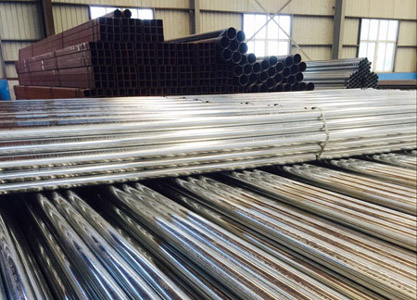

ASTM A501/A501M Hot-Formed Welded and Seamless Carbon Steel Structural Tubing

Standard: ASTM A501/A501M

Material: SA501 Grade A

Dimensions & Tolerance

Characteristics	Tolerance
Outside Diameter of Size (H:Longest Side; B:Shortest Side)	H≤63.5mm, B≤63.5mm	±0.5mm
	63.5mm＜H≤88.9mm, 63.5mm＜B≤88.9mm	±0.6mm
	88.9mm＜H≤139.7mm, 88.9mm＜B≤139.7mm	±0.8mm
	H>139.7mm, B>139.7mm	±1%
Wall Thickness	±10%
Squareness of Sides	90°±2°
External Corner Radius	R≤3WT
Twist	H≤38.1mm	±1.3mm/1m length
	38.1mm＜H≤63.5mm	±1.6mm/1m length
	63.5mm＜H≤101.6mm	±1.9mm/1m length
	101.6mm＜H≤152.4mm	±2.2mm/1m length
	152.4mm＜H≤203.2mm	±2.5mm/1m length
	H>203.2mm	±2.8mm/1m length
Straightness	10.4mm/1000mm in length
Length	+50mm/-0mm

ASTM A501/A501M specification covers black and hot-dipped galvanized hot-formed welded and seamless carbon steel square, round, rectangular, or special shape structural tubing for welded, riveted, or bolted construction of bridges and buildings, and for general structural purposes. Square and rectangular tubing is furnished in sizes 1 to 32 in. (25.4 to 813 mm) across flat sides with wall thicknesses 0.095 to 3.00 in. (2.41 to 76 mm), dependent upon size; round tubing is furnished in NPS 1⁄2 to NPS 24 inclusive, with nominal (average) wall thicknesses 0.109 to 1.000 in.(2.77 to 25.40 mm), dependent upon size. Special shape tubing and tubing with other dimensions is permitted to be furnished,
provided that such tubing complies with all other requirements of ASTM A501/A501M specification.

Manufacture: the tubing shall be made by one of the processes: seamless; furnace-butt welding (continuous welding);
electric-resistance welding or submerged arc welding followed by reheating throughout the cross section and hot forming by a reducing or shaping process, or both.
Inspection & Test: chemistry composition analysis, tensile test, charpy V-notch impact test applies to Grade B
only and wall thickness greater than 8mm, surface inspection and dimension check.

Keyword: ASTM A501/A501M, SHS, RHS, CHS, Square Hollow Section, Rectangular Hollow Section, Circular Hollow Section
