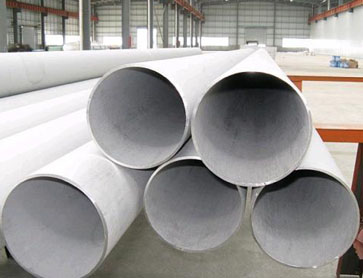

DIN 17458 Seamless circular austenitic stainless steel tubes subject to special requirements
Standard: DIN 17458
Equivalent Standards: DIN 17456, GOST 9941-81, GOST 9940-81, ASME SA213, ASTM A213, EN 10216-5
Material: X 6 CrNiMoTi 17 12 2, 1.4571
Equivalent Material: 10Ch17N13M2T, TP316Ti, UNS S31635
Chemistry Composition
C, %
Si, %
Mn, %
P, %
S, %
Cr, %
Ni, %
Mo, %
Ti, %
0.08 max
1.00 max
2.00 max
0.045 max
0.030 max
16.5-18.5
10.5-13.5
2.0-2.5
5*C-0.8
Mechanical Properties
Tensile Strength , MPa
Yield Strength, MPa
Elongation, %
500-730
210 min
35 min
Outside Diameter & Tolerance
Hot rolled
Outside Diameter, mm
Tolerance
44.5≤OD≤219.1
D1, ±1.5% or ±0.75mm
44.5≤OD≤219.1
D2, ±1% or ±0.5mm
219.1<OD≤610
D1, ±1.5% or ±0.75mm
Cold Drawn
Outside Diameter, mm
Tolerance
OD≤219.1
D2, ±1% or ±0.5mm
OD≤219.1
D3, ±0.75% or ±0.3mm
OD≤219.1
D4, ±0.5% or ±0.1mm
Wall thickness & Tolerance
Hot rolled
Outside Diameter, mm
Tolerance
44.5≤OD≤219.1
T1, ±15% or ±0.6mm
44.5≤OD≤219.1
T2, ±12.5% or ±0.4mm
219.1<OD≤610, WT≤0.05*OD
+22.5%/-15%
219.1<OD≤610, 0.05*OD<WT≤0.09*OD
T1, ±15% or ±0.6mm
219.1<OD≤610, WT>0.09*OD
T2, ±12.5% or ±0.4mm
Cold Drawn
Outside Diameter, mm
Tolerance
OD≤219.1
T3, ±10% or ±0.2mm
OD≤219.1
T4, ±7.5% or ±0.15mm
Length: 5800mm; 6000mm; 8000mm; 10000mm; 11800mm; and so on.
Max length: 18000mm, also U bending can be offered.
