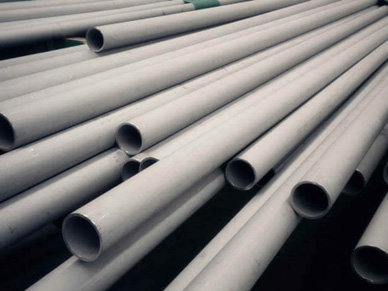

ASTM B622 UNS N10276 (Hastelloy C276)
Standard ASTM B622
Product











Home | About Us | Product | Know How | Contact Us

ASTM B622 Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
Standard: ASTM B622
Material: UNS N10276
Equivalent Material: 2.4819, Hastelloy C276, 00Cr15Ni60Mo16W5Fe5
Chemistry Composition
Ni, %
Mn, %
P, %
S, %
Si, %
Cr, %
Mo, %
Fe, %
W, %
C, %
Co, %
V, %
Remainder
1.00 max
0.040 max
0.030 max
0.08 max
14.5-16.5
15.0-17.0
4.00-7.00
3.00-4.50
0.01 max
2.50 max
0.35 max
Mechanical Properties
Tensile Strength , MPa
Yield Strength, MPa
Elongation, %
690 min
283 min
40 min
Outside Diameter & Tolerance
Outside Diameter, mm
Tolerance, mm
Seamless Cold-Worked
10≤OD＜16
±0.13
16＜OD≤38
±0.19
38＜OD≤76
±0.25
76＜OD≤114
±0.38
114＜OD≤152
±0.51
152＜OD≤168
±0.64
168＜OD≤219
±0.79
219＜OD≤356
+1.57/-0.79
356＜OD≤610
+3.18/-0.79
Hot-Finished
19≤OD≤38.1
+0.40/-0.80
38.1＜OD≤102
±0.80
102＜OD≤235
+1.60/-0.80
Seamless Hot-Worked
25≤OD≤48
+0.40/-0.79
48＜OD≤114
±0.79
114＜OD≤165
±1.20
165＜OD≤235
±1.60
Wall thickness & Tolerance
Outside Diameter, mm
Tolerance, %
Average Wall
Minimum Wall
Seamless Cold-Worked
10≤OD＜16
±15.0
+30.0/-0
16＜OD≤38
±10.0
+22.0/-0
38＜OD≤76
±10.0
+22.0/-0
76＜OD≤114
±10.0
+22.0/-0
114＜OD≤152
±12.5
+28.0/-0
152＜OD≤168
±12.5
+28.0/-0
168＜OD≤219
±12.5
+28.0/-0
219＜OD≤356
+15.0/-12.5
+30.0/-0
356＜OD≤610
+15.0/-12.5
+30.0/-0
Hot-Finished
19≤OD≤38.1
±12.5
+28.5/-0
38.1＜OD≤102
±12.5
+28.5/-0
102＜OD≤235
±12.5
+28.5/-0
Seamless Hot-Worked
25≤OD≤48
+16.0/-12.5
+28.5/-0
48＜OD≤114
+16.0/-12.5
+28.5/-0
114＜OD≤165
+16.0/-12.5
+28.5/-0
165＜OD≤235
+16.0/-12.5
+28.5/-0
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max developed length: 32 meters, also U bending can be offered, each leg length can be 15.24 meters.
Keyword: ASTM B622, Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube, Low Carbon Nickel-chromium-molybdenum Tube, Seamless Pipe, Seamless Tube, UNS N06002, UNS N06007, UNS N06022, UNS N06030, UNS N06035, UNS N06058, UNS N06059, UNS N06060, UNS N06200, UNS N06210, UNS N06230, UNS N06250, UNS N06255, UNS N06455, UNS N06686, UNS N06975, UNS N06985, UNS N08031, UNS N08135, UNS N08320, UNS N08535, UNS N10001, UNS N10242, UNS N10276, UNS N10624, UNS N10629, UNS N10665, UNS N10675, UNS N12160, UNS R20033, UNS R30556
More information about Hastelloy C276

Hastelloy C276, also named as Alloy C276, Hastelloy C, Inconel C-276 or Hastelloy C-276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.

Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.

Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.

Corrosion Resistant of Hastelloy C276

Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.

The characteristics of Hastelloy C276

- Excellent corrosion resistance in reducing environments
- Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
- High nickel and molybdenum contents providing good corrosion resistance in reducing environments
- Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints
- Resistance to localized corrosion such as pitting and stress-corrosion cracking
- One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

The applications of Hastelloy C-276

- Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
- Flue gas desulfurization systems
- Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
- Sour gas wells
- Pulp and paper production
- Waste treatment
- Pharmaceutical and food processing equipment

Fabrication with Hastelloy C-276

Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.
